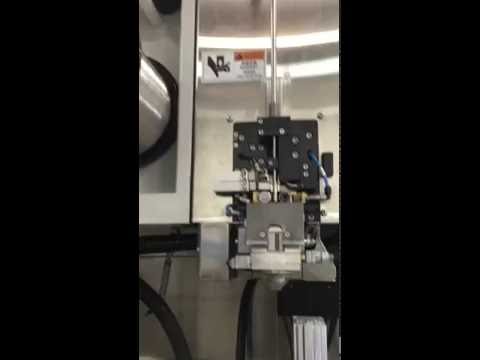

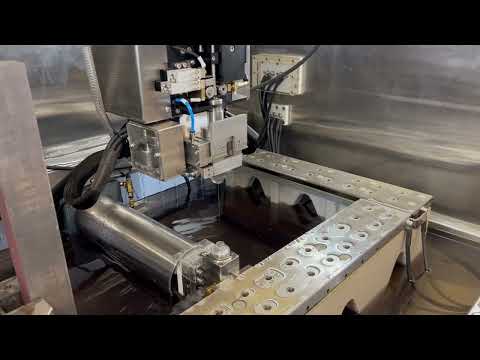

ACCUTEX AP-6040IA AP SERIES – ULTRA PERFORMANCE WIRE EDM
Wire EDM
AP series casting applies a compound table design by X axis moving table and Y axis moving column. The center of gravity is always located between 2 linear guideways of the X axis table. X and Y axes are independent, without accumulation stack error for less deformation by FEA (Finite Element Analysis). Improved maximum loading weight is up to 1,100kgs. Bi-directional repeatability is less than 2.5um after 5 times laser inspection.
| X | 600 mm |
| Y | 400 mm |
| Z | 350 mm |
| Auto Threading (Yes/No) | No |
| Submerged (Yes/No) | Yes |
| Dimensions | 2312 x 2795 x 2371 |
| Weight | 4800 kg |
Max. Workpiece Size L x W x H (mm) 1050 x 775 x 345
Max. Workpiece Weight (kg) 1000 1100
X/Y Stroke (mm) 600 x 400
UV Stroke (mm) 160 x 160
Z Stroke (mm) 350
Max. Cutting Taper (mm) +32°/H100mm
Max. Wire Spool Weight (kg) 16
Foot Print (mm) WxDxH 2312 x 2795 x 2371
Water System Capacity (L) 1000
Machine Weight (kg) 4800
