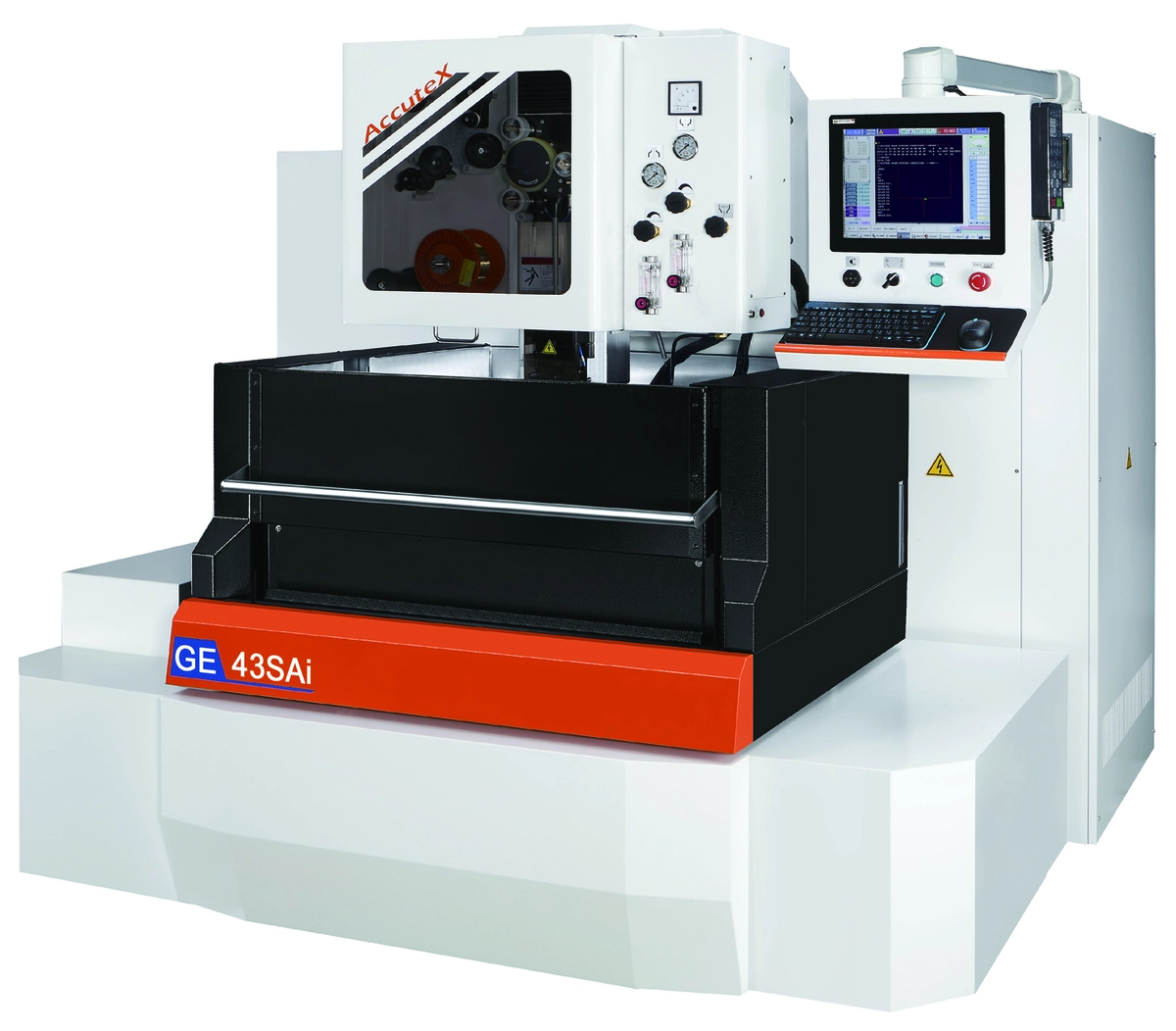

Accutex GE-43SAI GE Series ECONOMICAL WIRE EDM
Wire EDM
The GE series offers affordable, reliable high performance wire EDM machines for small parts and component manufacturing. Featuring new ergonomic space saving design, drop door, 3 sided table (back rail optional), AccuteX patented fully annealing AWT and submerged machining up to 8 inches (195 mm). The GE series machines are available in both traditional Ball Screw or AccuteX Linear Motor motion systems.
GE-SAi offers all the standard features AccuteX users have come to rely upon for many years. The standard direct couples 25mm C1 Class ball screws driven by 0.000004” Delta motors and drives, Hiwin linear guide ways and Fagor scales insure smooth, accurate motion for the life of the machine.
| X | 15.75" |
| Y | 11.81" |
| Z | 8.66" |
| Weight | 5,830 lbs. |
X Axis Travel 15.75″
Y Axis Travel 11.81″
Z Axis Travel 8.66″
U Axis Travel 2.36″
V Axis Travel 2.36″
Table Feed Rates 40.0 IPM
Max. Taper Angle ±45°
Max. Workpiece (XYZ) 29.52″ x 24.80″ x 8.46″
Max. Workpiece Weight 1,067 lbs.
Wire Diameter 0.006″ – 0.013″
Wire Spool Feed Rate 60 – 787 IPM
Wire Tension 300 – 2,200 grams
Start Hole Diameter 0.020″ ∅
Max. Wire Spool Weight 22 lbs.
Positioning Accuracy ±0.00016″
Repeatability (XY) ±0.00010″
Total Power Required 15 KVA
Deionized Resin Tank 935 0.4 cu/ft Fiberglass Bottle
Tank Capacity 220 Gallons
Floor Space 94″ x 108″ x 78″
CNC Control Screen 15″ Color Monitor
CNC Control Device 64-Bit Windows CE Based PC
Weight 5,830 lbs.
STANDARD ACCESSORIES
Machine, Generator, Numerical Control, and Filter System as well as the following items:
Automatic Wire Threading
Fagor Linear Glass Scales 0.000008” Resolution
Dielectric Chiller Unit
11lb. Spool Brass Wire (0.010 dia.) (1 each)
Wire Guides ( 0.010 dia.) (1 set)
Automatic Vertical Wire Alignment Device
Diamond Guide Removal Wrench
Filter Cartridges 12 x 20 5um, Quick Disconnect (2 pieces)
Fiberglass DI Resin Bottle ( 935 1/3 cu/ft capacity)
Virgin DI-Exchange Resin (1 cu/ft)
Flushing Nozzles (Upper / Lowers 2 sets) 4mm (2) and 8mm (2)
Tool Kit
Operation and Maintenance Manuals (1 set)
Complete software, calibration and parameter back-up (USB/CF Card)
OPTIONAL ACCESSORIES
PCD Cutting Circuit
ESPRIT CAD/CAM Interface Solid Wire Gold (Windows 7)
Solid Wire Platinum (Windows 7)
15” Color Touch Screen (not available w/ Windows 7 interface)
Wire Chopper
Jumbo Wire Feeder (45kg capacity)
CE Conformity
3R-209-610.1 EconoRuler (4th side workholding)
3R-261.1 Table Supports (set of 2)
3R-239.1K Ruler Vice w/ Torque Wrench
Transformer- Multi Tap, Step up/ Step Down, Isolation(accepts 480, 240 & 208 voltages)
ACCUTEX ROTARY TABLE (Factory Installed)
Field Retrofit (includes W-Axis, software/hardware, see below for workholding options)
PREVENTIVE MAINTENANCE ANNUAL PLAN (8 hours of labor)
(Travel expenses & parts used will be at an additional charge. If plan is purchased within
the first 12 months of the machine invoice date, an additional 20% discount will be applied to parts.)
