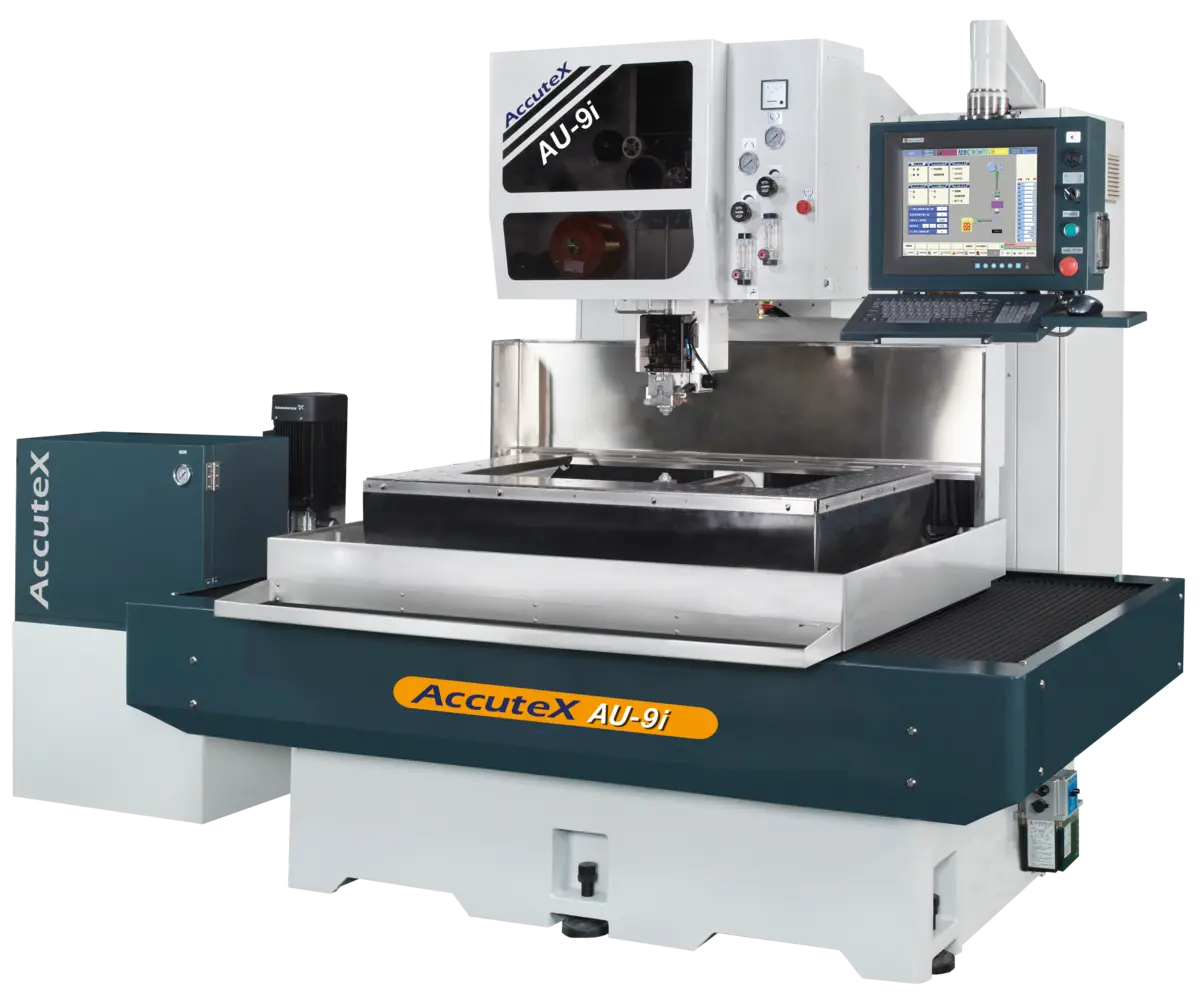

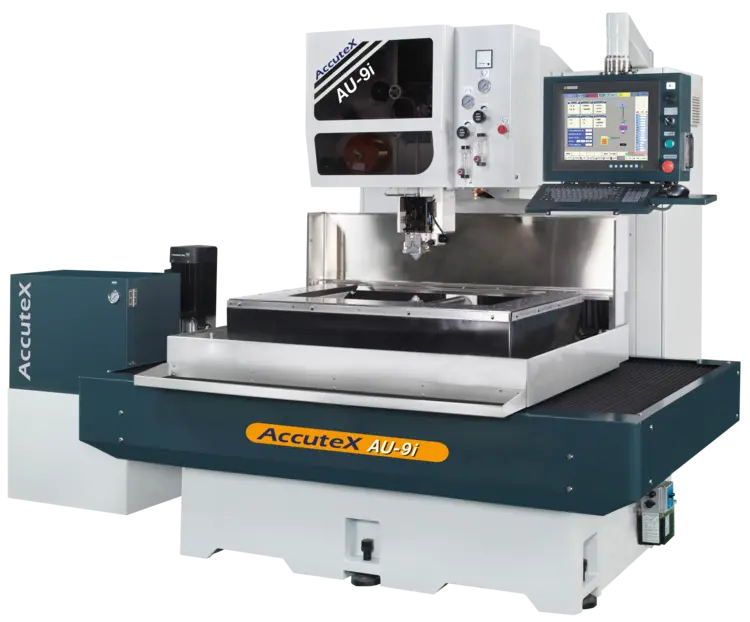

ACCUTEX AU-9I AU SERIES – FLUSHING-TYPE WIRE EDM

The AccuteX AU Wire EDM machines are designed by Finite Element Analysis (FEA) to assure optimized mechanical structure. Features include: Meehanite cast honeycomb-type base, highly-ribbed column mounted with oversized UVZ axis and reinforced lower-arm to increase stiffness. All castings are stabilized and subjected to rigid testing to insure maximum strength, permanent high precision and long durability.
High precision servo and transmission system uses 1.260 inch dia. C1 class ball screws with sub-zero and super-finish ground process for maximum smoothness and minimum pitch error. The axis are driven by means of closed loop, direct coupled AC servomotors with 4 millionths resolution and controlled by linear glass scale feedback system. The Hiwin linear guideways’ patented structure reduces up to 90% of friction and vibration producing unparrelled accuracy of motion.

The U-V axis mechanism has been placed in the cabinet above the working area. This design assures reliable durable operation in any shop environment. The rigid structure and 20mm C1 Class U-V ball screws provide high precision at the maximum flushing pressures necessary for high speed cutting. The precision work piece-mounting table is made of hardened stainless steel, has easy accessibility, and is designed as a standard clamping system. This permits the setting of a wide range of work pieces quickly and accurately. The worktable can also accommodate any commercial clamping system.

The machines are equipped with an annealing, fully automatic wire threading system (AWT) with a scrap wire disposal unit. AccuteX’s unique intelligent servo-control wire-threading technology (patent pending), together with multi-detectors makes it the world’s fastest and most reliable (threading at wire break point) automatic wire threading system on the market.

The Windows CE based CNC system’s powerful 64 bit CPU is a high speed, stable, industrial-grade computer, featuring a powerful user friendly software interface and 15” touch screen. This controls conversational cutting condition selection, on board operation manuals and help menus along with a long list of productivity functions and features makes new users effective and experienced operators capable of performing any application easily and accurately.

STANDARD ACCESSORIES
Machine, Generator, Numerical Control, and Filter System as well as the following items:

Automatic Wire Threading
Fagor Linear Glass Scales 0.000008” Resolution
Dielectric Chiller Unit
11lb. Spool Brass Wire (0.010 dia.) (1 each)
Wire Guides ( 0.010 dia.) (1 set)
Automatic Vertical Wire Alignment Device
Diamond Guide Removal Wrench
Filter Cartridges 12 x 20 5um, Quick Disconnect (2 pieces)
Fiberglass DI Resin Bottle ( 935 1/3 cu/ft capacity)
Virgin DI-Exchange Resin (1 cu/ft)
Flushing Nozzles (Upper / Lowers 2 sets) 4mm (2) and 8mm (2)
Tool Kit
Operation and Maintenance Manuals (1 set)
Complete software, calibration and parameter back-up (USB / CF Card)

OPTIONAL ACCESSORIES
PCD Cutting Circuit
ESPRIT CAD/CAM Interface Solid Wire Gold (Windows 7)
Solid Wire Platinum (Windows 7)
Wire Chopper
Jumbo Wire Feeder (45kg capacity)
CE Conformity
Transformer- Multi Tap, Step up/ Step Down, Isolation (accepts 480, 240 & 208 voltages)
ACCUTEX ROTARY TABLE (Factory Installed)
Field Retrofit (includes W-Axis, software/hardware, see below for workholding options)
